Can Bus Protocol: Applications in Valve Systems

The CAN Bus Protocol — developed by engineering and technology company Bosch in the 1980s — is a communication standard recognized for its role in industrial and automotive applications. It originated as a solution to enhance data interchange between electronic control units (ECUs) in vehicles to improve overall system performance. By 1993, the protocol had gained international recognition and was standardized as ISO 11898. This distinction marked its importance in both industrial and automotive sectors.

The core function of the CAN Bus Protocol, also referred to as the CAN Communication Protocol, is to facilitate communication in complex systems. The protocol is highly efficient due to its ability to enable multiple microcontrollers and devices to interact within a network without needing a central computer makes it highly efficient. This feature is crucial in valve control systems, where accurate and timely communication between different components are essential for optimal operation. The protocol ensures that data is transmitted reliably and swiftly across various system parts, from simple sensors to complex actuators.

Beyond its role in valve automation, the CAN Bus Protocol finds extensive use in a range of electronic systems across various industries. In the automotive industry, it helps manage the intricate networks of sensors and actuators. The manufacturing sector relies on CAN Bus for seamless connectivity across production lines, enhancing operational efficiency.

Additionally, it’s employed in building automation systems, where it’s used to integrate and control different functions such as heating, ventilation, air conditioning and security. The versatility and adaptability of the CAN Bus Protocol underscore its widespread adoption and significance in modern applications.

The technical mechanics of the CAN Bus Protocol revolve around its ability to enable direct communication between microcontrollers and devices within a network. This eliminates the need for a central host computer, which is a significant advantage in complex systems.

In its operation, the CAN Bus uses a message-based protocol. When devices on the network need to communicate, they send out data in frames. These frames are transmitted serially along the network.

A key feature of this system is the way it handles simultaneous transmissions. If more than one device attempts to send a message at the same time, the protocol ensures that the device with the highest priority can continue transmitting while others wait their turn. This prioritization is crucial for maintaining an orderly flow of communication and preventing data collisions.

Moreover, every device in the network receives the frames, including the device that sent them. This universal reception ensures that every part of the system is updated simultaneously, contributing to the overall efficiency and responsiveness of the network. Such a mechanism is particularly valuable in valve control systems, where precise timing and synchronization are essential for effective operation.

The CAN Bus Protocol is crucial in various industries that require precise valve control. Its applications extend across multiple fields, each with unique demands:

• In water treatment plants, CAN Bus manages valves for efficient and safe water flow during treatment processes, ensuring precise control and error handling.
• In the oil and gas industry, it controls valves handling oil and gas flow, maintaining safety standards by ensuring accurate responses to pressure changes.
• In manufacturing, the protocol synchronizes valves with other components in automated production lines, optimizing operational efficiency and reducing downtime.

Scenario Deep Dive: Water Treatment Plant

In a water treatment plant, multiple valves control the flow of water through various purification stages. Each valve must operate in sync with others to ensure efficient and safe water processing. Here, the CAN Bus Communication Protocol plays a critical role:

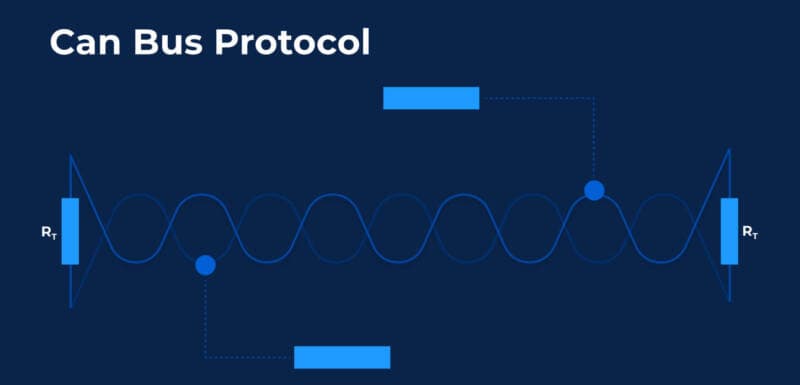

• Differential transmission: The protocol uses a physical layer with differential transmission on a twisted pair wire, which is robust against electrical noise — a common challenge in industrial environments.
• Bit-wise arbitration: When multiple valves need to operate simultaneously, the CAN Bus employs non-destructive bit-wise arbitration. This ensures that if two valves send a message at the same time, the one with higher priority (perhaps a valve critical to a particular stage of water treatment) gets bus access first.
• Small and secure messages: Each command sent to a valve is compact (up to eight data bytes) and safeguarded with a checksum. This minimizes communication errors, ensuring the valves operate accurately as intended.
• Prioritization and identification: Messages don’t have explicit addresses. Instead, they carry numeric values indicating their priority and identifying their content. This way, the system knows which valve to activate and at what time, based on message priority.
• Error handling and fault isolation: The CAN Bus has an elaborate error handling mechanism. If a message to a valve is not properly received, it is automatically retransmitted. The system also effectively isolates and removes any faulty valve from the bus, preventing disruption in the entire process.

While the CAN Bus Protocol greatly enhances valve system operations, addressing its technical limitations is the key to fully acknowledging its benefits.

Benefits include:

• Enhanced control and precision: The CAN Bus Protocol improves valve control, ensuring accurate responses to control signals in real-time. This precision is vital for efficiency and safety in various applications.
• System integration: It simplifies integrating valves into larger control systems, enhancing functionality and efficiency by creating an interconnected network.

Challenges include:

• Technical limitations: Response time can be a challenge in extensive networks, potentially causing delays. Network complexity also demands careful planning. Solutions include optimizing network architecture and, where necessary, integrating complementary technologies to improve performance.

Emerging Technologies

Advancements in smart sensors and Internet of Things (IoT) integration are expected to enhance the capabilities of the CAN Bus Protocol in valve automation. These technologies promise improved data analytics and real-time decision-making as well as a boost in energy efficiency and sustainability in operations.

Potential for Innovation

In smart manufacturing, the CAN Bus Protocol could help create more automated, interconnected systems. Its application could extend to entire production lines, enabling synchronized operations, efficient resource use and advanced predictive maintenance. The development of sophisticated diagnostic tools within the CAN Bus framework could further revolutionize maintenance strategies, potentially extending system lifespans and minimizing downtime.

Overall, the future of CAN Bus in valve automation should be transformative, as it keeps pace with the evolving demands of industrial automation and control systems.

The CAN Bus Protocol has emerged as an indispensable tool in valve automation and control, offering enhanced precision, integration and adaptability. Its role in modern industrial systems is critical, ensuring efficient and reliable operations across many sectors.
